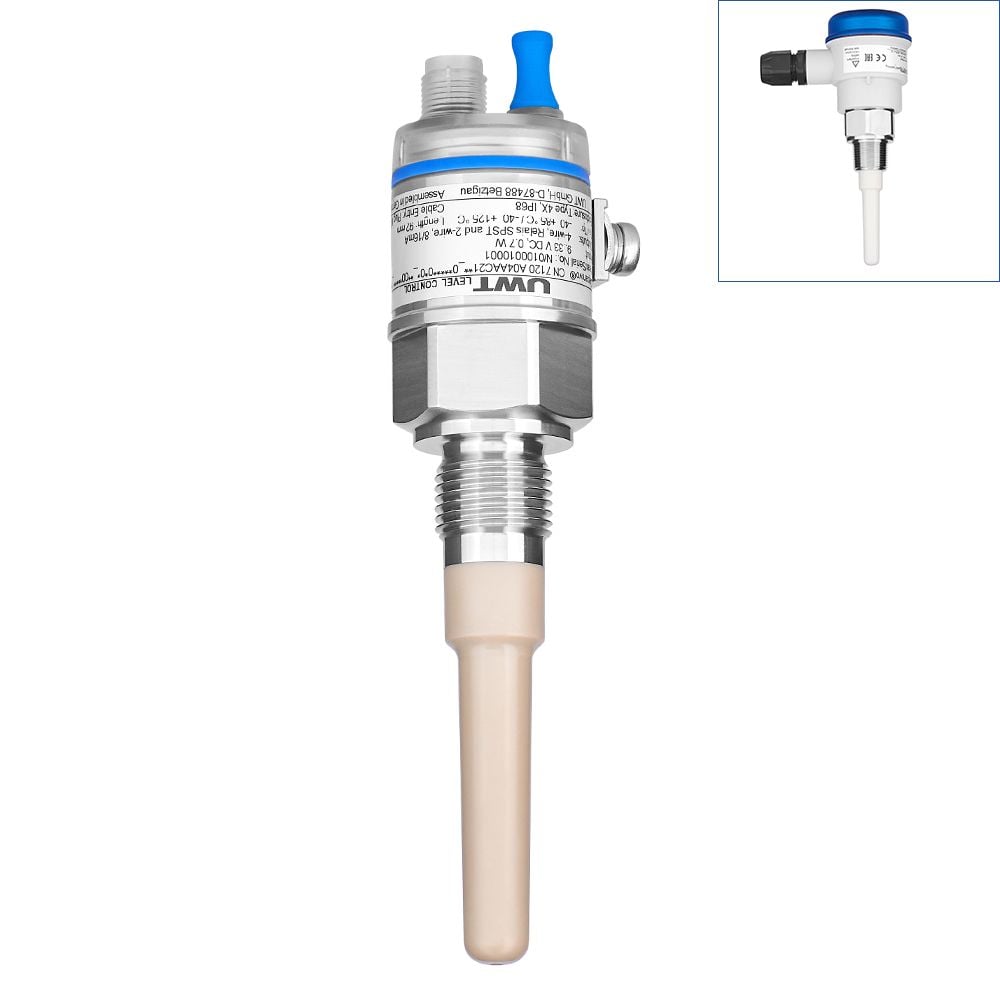

UWT Capacitive sensor Capanivo® – CN 7120 – Stainless steel
- Point level measurement, Interface level measurement
- Liquids, Solids
- DK value ≥ 1,5
Application area

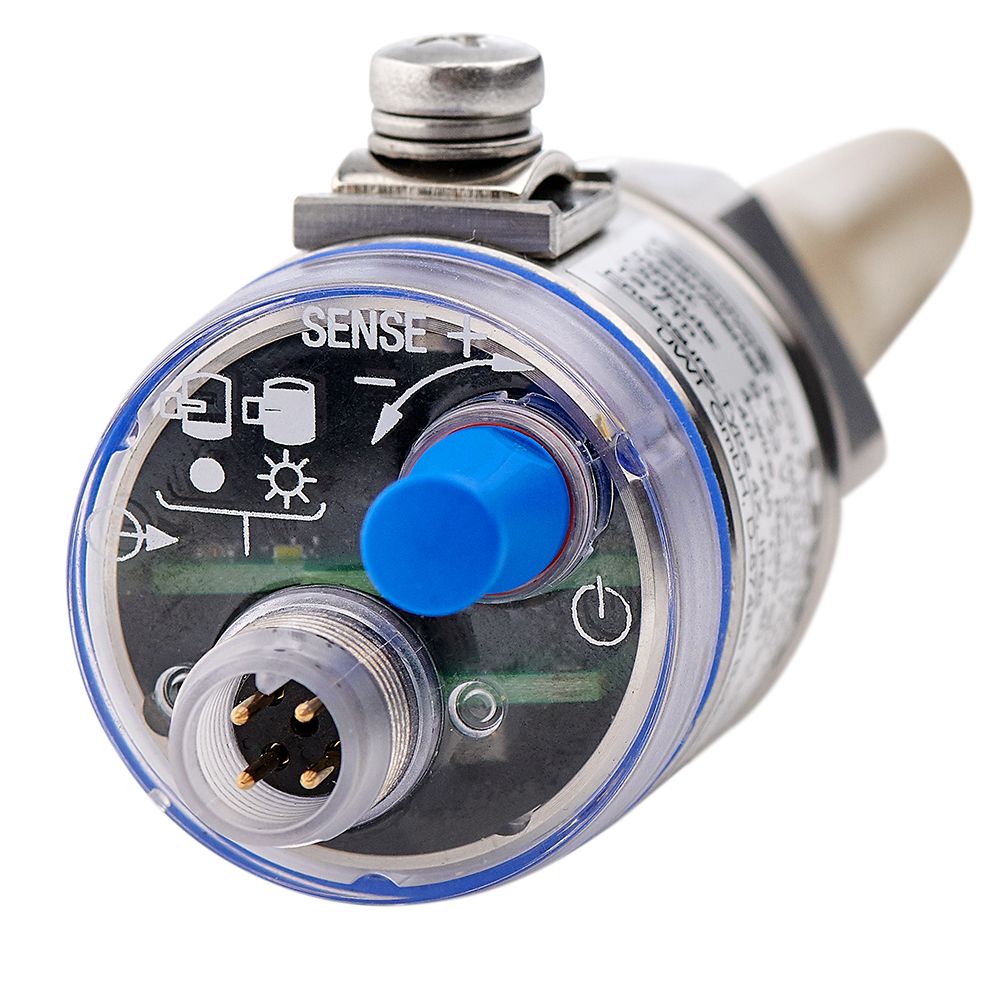

The capacitive level limit switch Capanivo® CN 7120 is used as a full, demand or empty detector as well as for leakage detection in all liquid applications. Due to the compact design with 1/2″ process connection the sensor is perfectly suited for use in small vessels and pipes. In addition, the sensor, which has been developed in accordance with EHEDG guidelines, meets increased hygiene requirements. With the IO-Link technology on board, digital data collected by the sensor can be transferred quickly and easily. Moreover the sensitivity can be adjusted directly at the sensor via a potentiometer.
Your benefit
- Easy integration in existing processes with IO-Link technology
- “Tip Sensitivity” and “Active Shield Technology” ensure reliable measurement results even with sticky or foaming media
- Suitable for CIP/SIP-processes with temperatures up to 150°C
| Measurement principle | Capacitive |
|---|---|
| Measuring task |
|
| Versions |
|
| Medium |
|
| Mounting position |
|
| Ambient temperature | -40°C … +85°C (-40 … +185°F) |
| Process temperature | -40°C … +125°C (-40°F … +257°F), CIP/SIP up to 150°C (302°F) |
| Process pressure | -1 bar … +25 bar (-14.5 psi … +363 psi) |
| Minimum sensitivity | DK ≥ 1.5 |
| Housing material |
|
| Housing protection rating | IP68, Type 4X |
| Threaded connection |
|
| Flange connection |
|
| Hygienic fittings | ≥ Triclamp 1″ |
| Wetted materials |
|
| Accuracy | — |
| Mechanical load | probe: 400 N |
| Min. immersion length | 92 mm (3.6″) |
| Max. immersion length | 92 mm (3.6″) |
| Power supply | 9…33V DC |
| Signal output |
|
| Approvals |
|
| Ex markings | Ex i |
| Hygienic / Pharma |
|
| Ship approval | — |
| Overfill protection |
|
| SIL qualification | — |
| Further approvals | — |
| Adjustment possibility |
|
| Optical indicator | LED |
| Features |
|
